Rockfalls are among the most common and unpredictable geohazards affecting transportation corridors, mining operations, hydropower projects and infrastructure in mountainous terrain. TechFab India’s Rockfall Barrier Systems are engineered to provide reliable protection against rockfalls, shooting rocks, boulders and rock avalanches.
Overview
Success Stories
Products
Resources

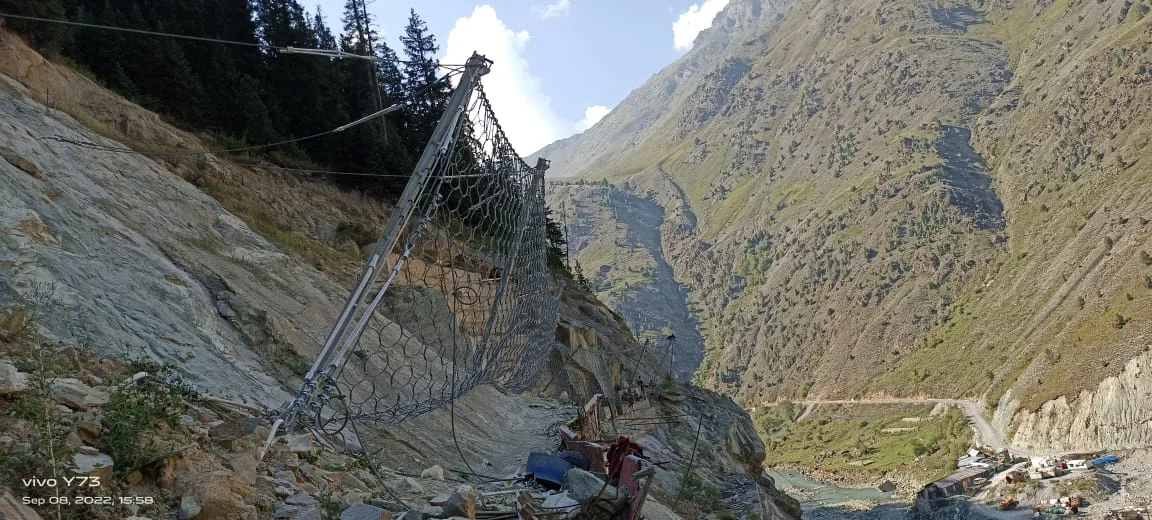

At the heart of every TechFab Rockfall Barrier is a high-performance interception system that combines flexibility, strength, and durability. The elastic behavior of the barrier net dissipates impact forces efficiently, minimizing load transfer to the supporting structure and foundation system.
Available in energy absorption capacities ranging from 100 kJ to over 11,000 kJ and barrier heights from 3 m to 9 m, TechFab barriers are designed to address a broad spectrum of rockfall scenarios — from frequent low-energy events to extreme high-energy impacts. All systems are rigorously tested and validated in accordance with European Assessment Document (EAD 340059-00-0106).
Key features include high-tensile protection technology with engineered steel wire interception nets, advanced energy dissipation systems with specialized braking elements, a continuous downslope interception layer, corrosion-resistant components for harsh environments, and modular construction enabling rapid installation with minimal disruption.
A Rockfall Barrier System is a flexible protection structure designed to intercept, absorb and contain falling rocks, boulders and rock avalanches before they impact roads, railways, structures or other critical infrastructure. The system dissipates the kinetic energy of falling rocks through specially engineered high-tensile steel nets and energy absorption components.
Rockfall barriers work by capturing and dissipating the impact energy of falling rocks. When a rock strikes the barrier, the flexible net deforms and transfers the load to support ropes, posts, anchors and energy dissipation devices, reducing the impact forces and preventing rocks from reaching protected areas.
TechFab Rockfall Barrier Systems are available in a wide range of energy classes, from 100 kJ to over 11,000 kJ, enabling protection against both low-frequency, high-energy rockfalls and frequent lower-energy events.
The required energy capacity is determined through detailed rockfall hazard assessments, trajectory simulations, geological investigations, slope geometry analysis, and site-specific risk evaluations. TechFab’s engineering team assists in selecting the most suitable barrier configuration for each project.
Rockfall barriers are commonly installed along:
Yes. TechFab Rockfall Barrier Systems are tested and validated in accordance with European Assessment Document (EAD 340059-00-0106), ensuring proven performance under dynamic impact loading conditions.
Flexible barriers offer higher energy absorption efficiency, lower foundation loads, faster installation, easier adaptation to complex terrain and reduced environmental impact compared to conventional rigid protection structures such as concrete walls.
Rockfall barriers generally require periodic inspections to assess net condition, anchors, support ropes, posts and energy dissipation elements. After a significant rockfall event, the system should be inspected and any damaged components replaced if necessary.

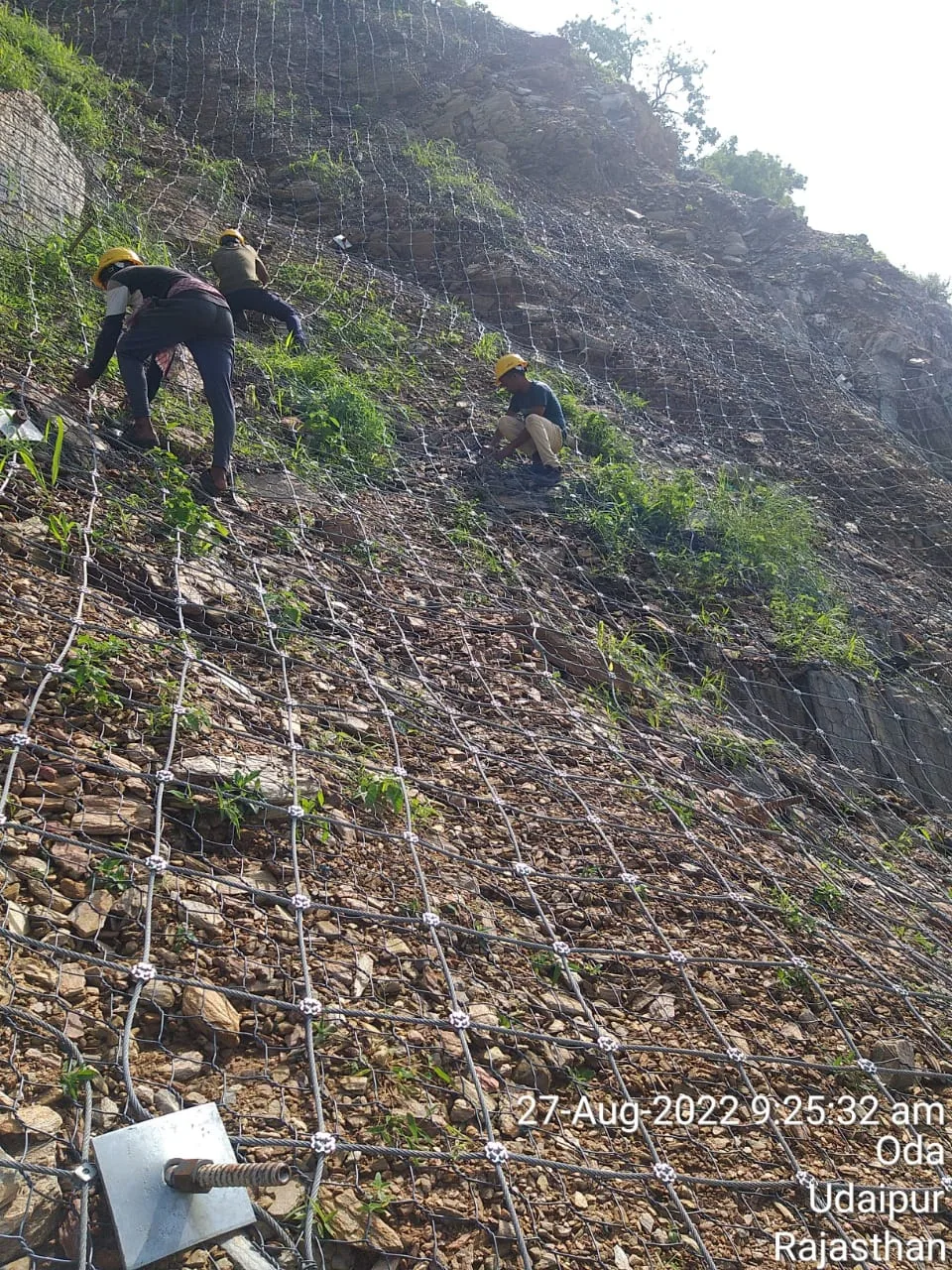

Yes. Rockfall barriers are often used as part of a comprehensive geohazard mitigation strategy and can be combined with active slope stabilization measures such as high-tensile mesh systems, rock bolts, soil nails, ground anchors and drapery systems to provide complete slope protection.
Our geohazard specialists can assist with site investigations, rockfall hazard assessments, trajectory analysis, barrier selection, detailed engineering, and installation support to ensure optimum protection for your project.
