TechFab’s Soil Nailing and Anchoring Systems deliver advanced ground reinforcement solutions engineered to stabilize soil and rock slopes by introducing tensile resistance within the ground mass.
These systems enhance slope stability, control deformation, and increase the overall factor of safety against failure — ensuring long-term reliability for critical infrastructure.
Overview
Success Stories
Products

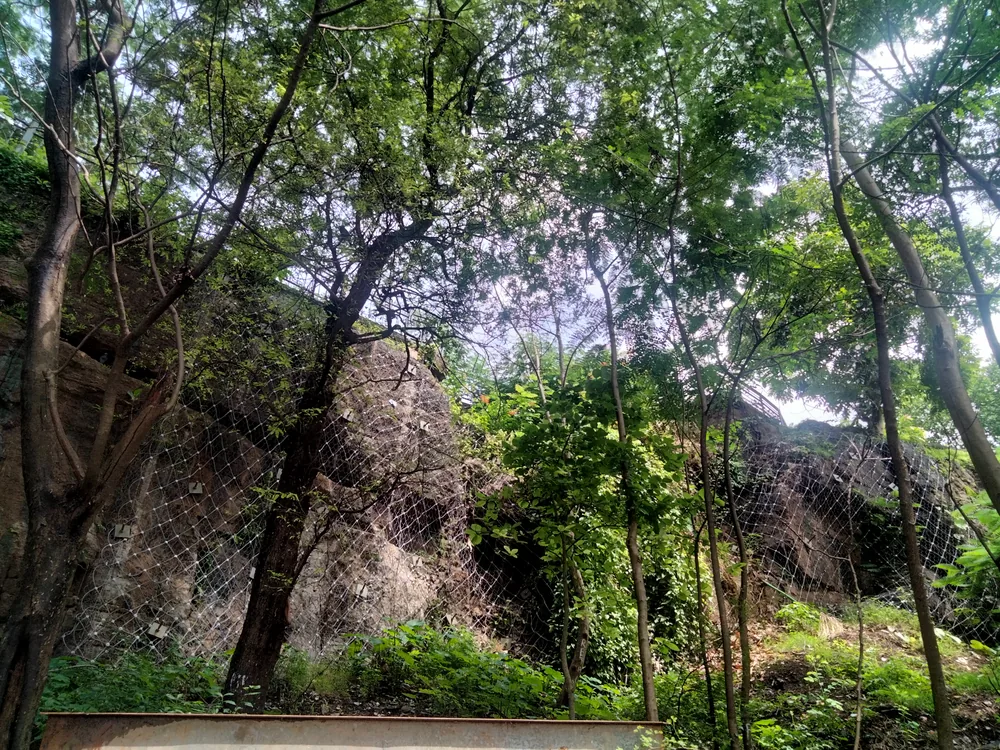

Soil nails and anchors are installed into the slope through drilled holes and grouted to form a reinforced soil or rock mass. The reinforcement interacts with the surrounding ground to improve shear resistance, reduce displacement, and prevent progressive slope failures — suitable for soil, weathered rock, and fractured rock masses with minimal excavation requirements.
TechAnchor is a hollow-bar anchoring system that integrates drilling, grouting and anchoring in a single operation — ideal for unstable ground, loose soils, weathered rock and challenging drilling conditions. Available in multiple sizes (R25–T76) with matching accessories such as drill bits, couplers, hex nuts, and bearing plates, TechAnchor is designed for both temporary and permanent applications and is compliant with EN 14490, the European Standard for Soil Nails.
The Soil Nail Reinforcement System uses passive reinforcement elements installed within soil slopes to create a reinforced ground mass capable of resisting failure mechanisms, ideal for long-term, cost-effective slope protection. The Rock Anchoring System provides high-capacity anchoring solutions for stabilizing rock slopes, retaining structures and foundations, delivering dependable load transfer and structural integrity under demanding conditions.
Soil nails are passive reinforcement elements, while anchors are active systems designed to apply pre-tensioned loads.
In weathered rock , loose soils and areas where conventional drilling with casing is difficult.
Yes, they are suitable for both temporary and permanent stabilization works.
TechAnchor is fully compliant with EN 14490, the European Standard for Soil Nails.
Drill bits, couplers, hex nuts, bearing plates, and other installation accessories.
By introducing tensile resistance within the soil mass, reducing shear stresses and preventing slope movement.
Absolutely — TechFab designs include pore water pressure considerations for such environments.
Epoxy and galvanized coatings for enhanced corrosion resistance.
Yes, self-drilling anchors combine drilling and grouting in one operation, significantly reducing installation time.
Smaller diameter bars with high mechanical properties reduce material and storage costs while maintaining load capacity.
